Phoenix 400 - Configuration 6.5

Designed in France and manifactured in Québec

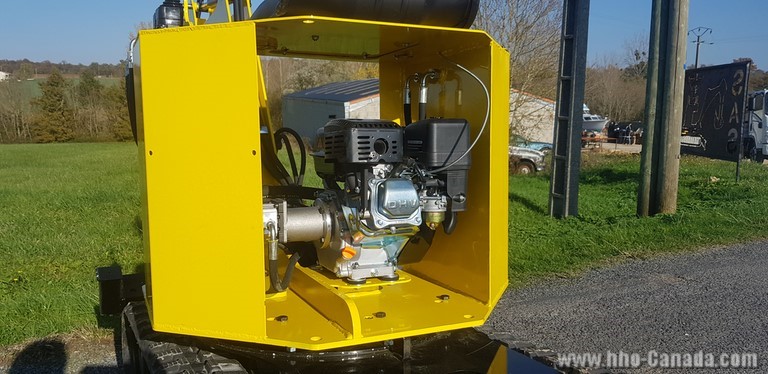

6.5 hp Excalibur motor

The PH400 configuration 6.5 is equiped with a 6.5 hp Excalibur motor, a double pump 2.5 + 2.5 cc, a standard slewing ring and a 8" bucket.

This configuration is designed for a private use for poeple whom wish to do maintenance on their property or do some small excavation works.

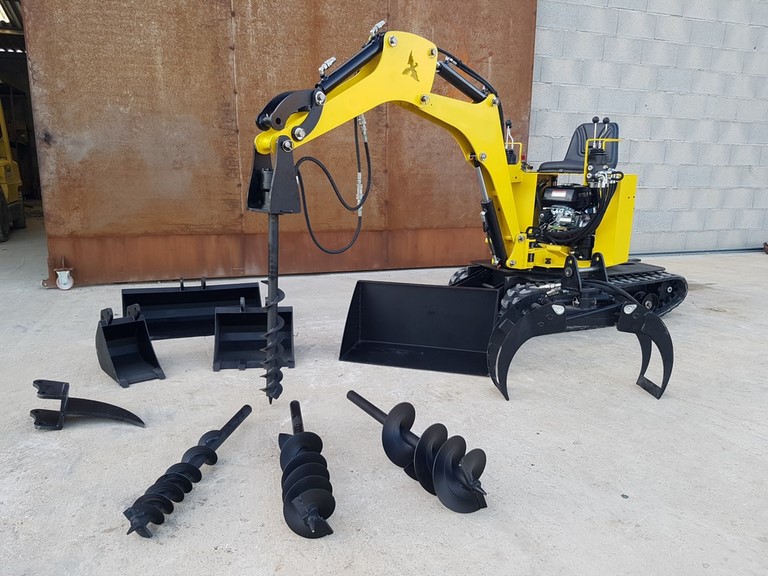

It is possible to adapt an auger or a **grappling hook** to the stick.

Order form (pdf)

**Fill the order form and send it to us by mail or email in order to receive a quote.**
Product and version	Prices
PH400 - Ready to use Version	8625.00 $
PH400 - Welded and painted version	6850.00 $
PH400 - Kit version	6150,00 $
PH400- Version kit à souder	5525,00 $
TPS 5% + TVQ 9,975% - Deposit of 750 $ requested for an order

Documentation PH400 (pdf) (FR)

User guide (pdf) (FR)

Technical description

Empty weight: 1550 lbs (720kg)
Total height: 5'7" (1,6m)
Overall width: 32" (0,83m)

Arm

Turret rotation angle: 210°/150° (right or Left)
Detachable arm on the walnut to allow digging along a wall
Maximum height (from the ground): 8'3" (2,5m) (bucket open)

Maximum depth (from the groung): 5'3" (1,6m)
Breaking force: 1,6 t

Standard Engine

Air cooled engine
Fuel: Gasoline
Type: Single cylinder, 4 stroke - 6,5 hp
Power: 4,1 kW
Cylinder capacity: 196 cc
Consumption: (100% charge): 1,9 L/h
Fuel tank capacity: 3,7 L

Hydraulic system

Hydraulic Pump: Dual Gear Pump 2,5 + 2,5 cc
Operating pressure: 140 bars
Flow rate: 5 + 5 l/min
Traction motor: Orbital
Hydraulic tank capacity: 25 l
Tracks of origin: 180x72x43

In the Kit version, hydraulic oil and paint are not supplied.
In the Welded and painted version, hydraulic oil is not supplied.
